Dreambox - media filter 3.94" 0.5 gallons Volume SpaceSaver

Dreambox - media filter   3.94   0.5 gallons Volume  SpaceSaver
For a larger view click on the thumbnail
Dreambox - media filter   3.94   0.5 gallons Volume  SpaceSaver
Dreambox - media filter   3.94   0.5 gallons Volume  SpaceSaver
Dreambox - media filter   3.94   0.5 gallons Volume  SpaceSaver
Dreambox - media filter   3.94   0.5 gallons Volume  SpaceSaver
250.25 USD
Add to cart

Shipping time: 3-4 Days
Product no.: D-MF-100-S


Products description

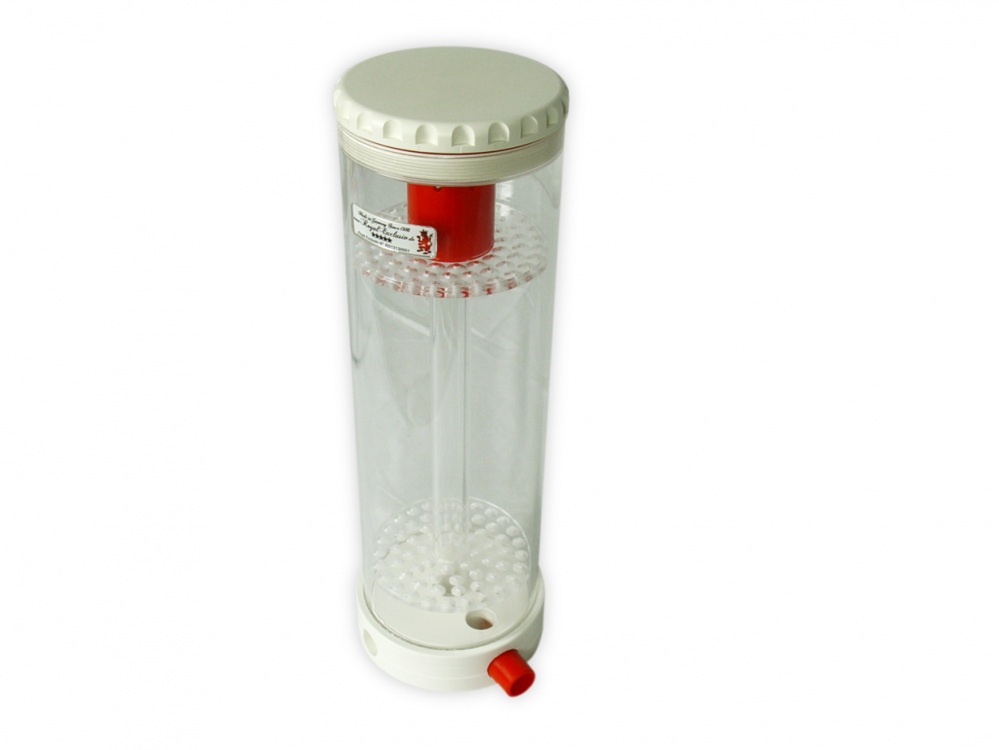

Dreambox - media filter 2 liter - SpaceSaver - the space wonder

Technical data:
The space saving version, internal screw thread
Dimensions: Ø 3.93" (100mm)tube x 4.33" (110mm)bottom  x ~ 13.19" (335mm) height
Volume:  ~ 0.58 gallons / 2.2 liters

Media filter made of PVC an high quality acryl-glass / Plexiglas®

  • including pipe breakthroughs
    outer Ø 1/2" (20mm)
  • universal usable as media filter for differ medias
  • on request: assembly into your Dreambox (only by buying a new system)
    optional internal tubbing/piping:  Extra charge + 125,-€
    optional external tubbing/piping:  Extra charge + 145,-€
  • high quality rigid PVC and Plexiglas® (plexiglass)
  • 100% Made in Germany / assembly by hand
  • 25 Years of experience in PVC filter and skimmer construction

The flow rates of the media-filter per hour (recommended):

3.15" (80mm) = 0.4 gallons (1.5l) approx. 132-264 gph  (500-1000 l/h)
3.94" (100mm) = 0.5 gallons (2.0l) approx. 264-396 gph (1000-1500 l/h)
4.92" (125mm) = 0.9 gallons (3.5l) approx. 528-660 gph 2000- 2500 l/h
5.91" (150mm) = 1.3 gallons (5.0l) approx. 660-925 gph (2500-3500 l/h)

Example: 4.92" (125mm) with a MRD 2500 limited/controlled by of ball valve. So, the motion of the pellets should look like: play video!

Please contact us for checking the installation of your possible media filters for the feasibility.
