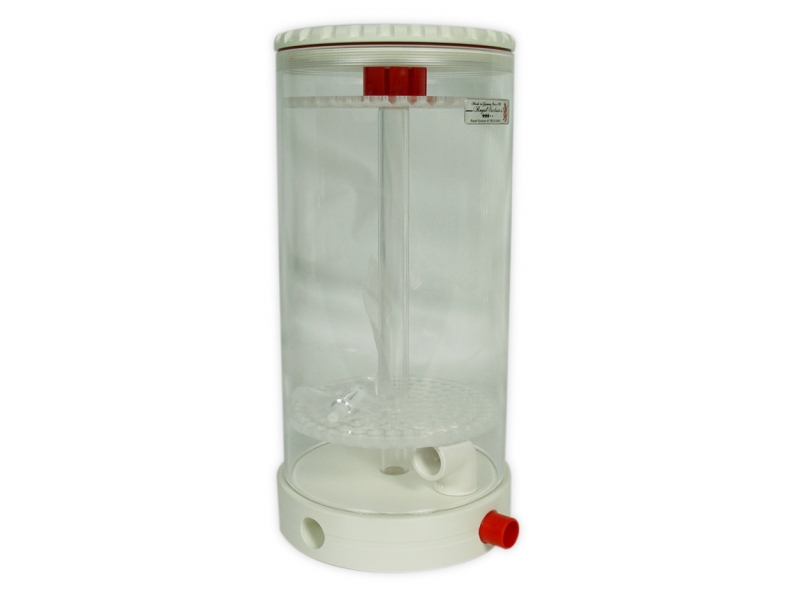

Dreambox - media filter Ø 5.91" 1.3 gallons Volume SpaceSaver

Dreambox - media filter 1.3 gallons (5 liter) - Space Saver -

Technical data:
Dimensions: Ø 5.91" (150mm) tube x 6.49" (165mm) buttom x ~ 12.99" (330mm) height
Volume:  ~ 1.29 gallons / 4.9 liters

Media filter made of PVC an high quality acryl-glass / Plexiglas^®

• including pipe breakthroughs
  outer Ø 1/2" (20mm)
• universal usable as media filter for differ medias
• on request: assembly into your Dreambox (only by buying a new system)
  optional internal tubbing/piping:  Extra charge + 125,-€
  optional external tubbing/piping:  Extra charge + 145,-€
• high quality rigid PVC and Plexiglas^® (plexiglass)
• 100% Made in Germany / assembly by hand
• 25 Years of experience in PVC filter and skimmer construction

The flow rates of the media-filter per hour (recommended):

3.15" (80mm) = 0.4 gallons (1.5l) approx. 132-264 gph  (500-1000 l/h)
3.94" (100mm) = 0.5 gallons (2.0l) approx. 264-396 gph (1000-1500 l/h)
4.92" (125mm) = 0.9 gallons (3.5l) approx. 528-660 gph 2000- 2500 l/h
5.91" (150mm) = 1.3 gallons (5.0l) approx. 660-925 gph (2500-3500 l/h)

Example: 4.92" 125mm with a MRD 2500 limited/controlled by of ball valve. So, the motion of the pellets should look like: play video!

Please contact us for checking the installation of your possible media filters for the feasibility.
