Red Dragon« 3 Mini Speedy 50 Watt / 1.321 gph

Red Dragon« 3 Mini Speedy 50 Watt / 1.321 gph
For a larger view click on the thumbnail
Red Dragon« 3 Mini Speedy 50 Watt / 1.321 gph
Red Dragon« 3 Mini Speedy 50 Watt / 1.321 gph
Red Dragon« 3 Mini Speedy 50 Watt / 1.321 gph
Red Dragon« 3 Mini Speedy 50 Watt / 1.321 gph
788.03 USD
voltage
Add to cart

Shipping time: 3-4 Days
Product no.: 601


Products description

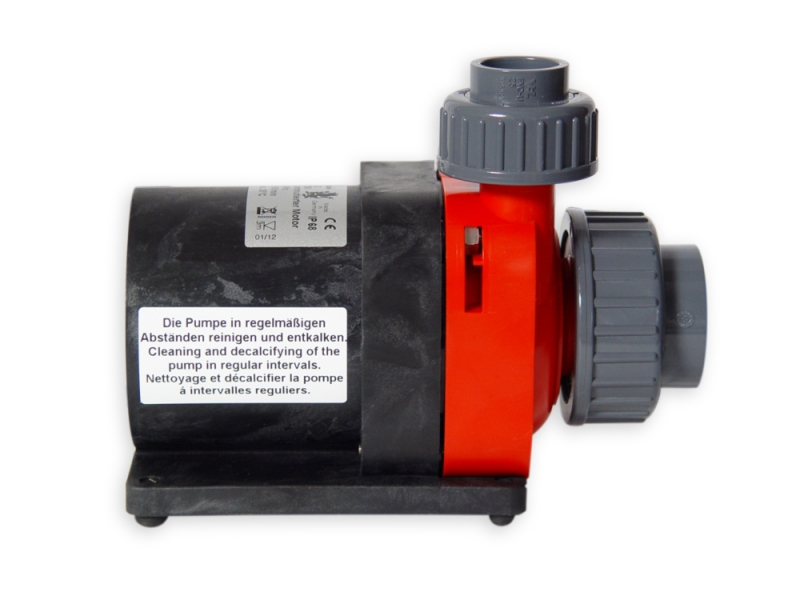

Red Dragon® 3 Mini Speedy Pump 50 Watt / 1.321 gph / 5,0m³

Technical data Red Dragon® 3 Mini Speedy Pump 50 Watt / 1.321 gph / 5,0 m³:
50 Watt/h  157.5" (4,0 mtr.) pressure height
speed adjustable Brushless DC pump

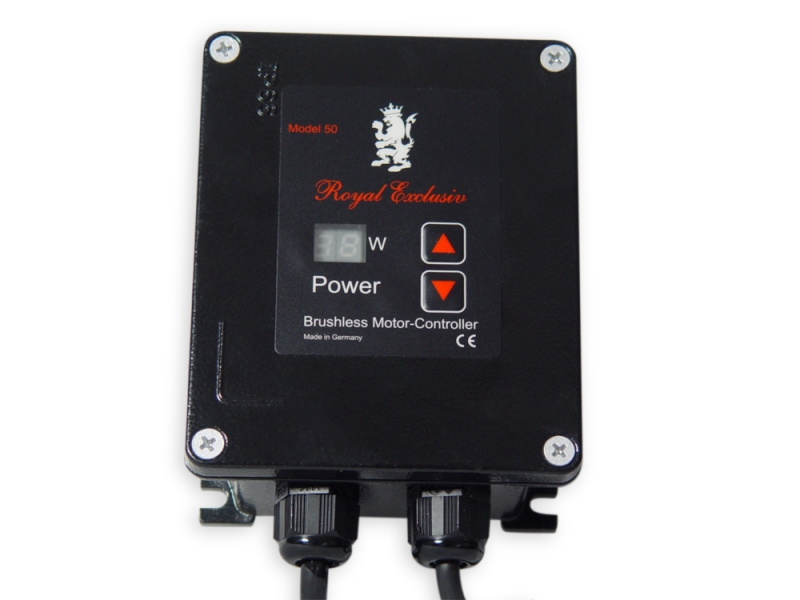

Watt- and Percent- Display
intake side 1 1/4" (40 mm) - pressure side 0.75" (25 mm)
operating voltage: 110 Volt 60 Hz  (also in 230V/50Hz available)
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,2 kg
Height of intake side: center 2.76" (70 mm)
Dimension pump:
4.33" wide / 8.87" length / ~ 6.30" height
110 mm wide / 200 mm length / ~ 160 mm height
Dimension control unit:
4.72" wide / 6.69" length / ~ 2.56" height
120 mm wide / 170 mm length / ~ 65 mm height

pdf_icon  Data_sheet_and_spare_parts.pdf   pdf_icon  Operating_and_maintenance_manual.pdf

  • Saltwater resistant M6 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless dc-delivery pump with grouted power electronics
  • High efficient technology "Made in Germany"
  • Inlet and Outlet complete with DIN connection, compact dimensions
  • High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
  • Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
  • Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
  • Heavy and massive craftsmanship against vibrations and oscillation
  • CE conformity, developed and built according to VDE guidelines
