Red Dragon® X 85 Watt / 6.5m³ / 1750GAL / 12V

Red Dragon^® X pump 85 Watt / 6.5m³ / 1750GAL/h / 12V

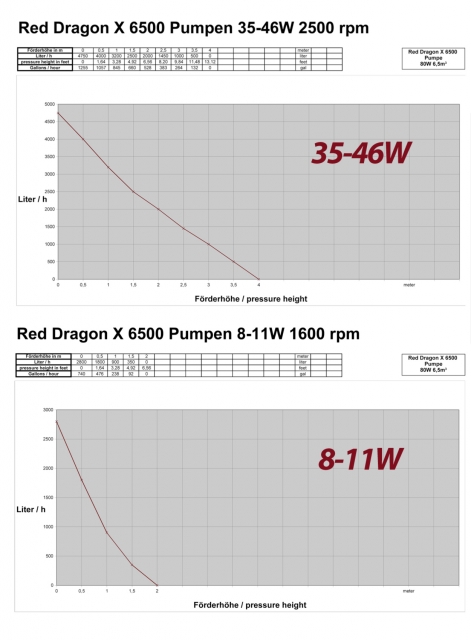

Technical data  Red Dragon^® X pump 85 Watt 6,5 m³:
max. 85 Watt/h  5,5 mtr. pressure height
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from 8W up to 83W
intake side 32 mm (1") - pressure side 32 mm (1")
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 55 mm
Dimension pump: 90 mm wide / 170 (150 without inlet protection) mm length / ~ 130 (165 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height

   Operating_and_maintenance_manual.pdf

• Saltwater resistant M4 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless DC-delivery pump with external power electronics
• High efficient technology, Sine Wave for very quiet running
• Inlet and Outlet complete with DIN connection, compact dimensions
• Easy usage and maintenance, low risk of calcification
• compact design against vibrations and oscillation
• CE conformity, developed and built
• high quality touchscreen display with feeding function
  (protection against dry-running, over heating, over voltage, blocking etc.)
• included in the scope of delivery:
  • Pump with 2m supply line
  • Controller with 1,5m supply line
  • Power plug with 1,5m supply line / rubber connector
  • with inlet protection
  • with 25mm socket and 32mm socket with O-rings
  • Manual German/English
