for aquariums from 100 gallons - 250 gallons
(400 liter - 950 liter)

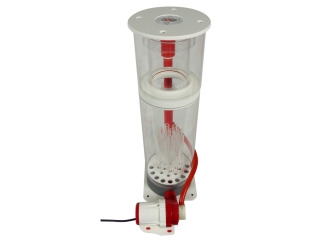

hard facts Bubble King® Supermarin 160 RDX:
1.000 l/h Air - 4.000 l/h Water = 1 Pump Red Dragon® X 3000 DC 24V
Base plate: 18 cm x 18 cm / height ~ 56 cm
VERSION Bubble King® Supermarin 160 RDX:
Skimmer-Design 2 Versions available
a) grey/red model
b) white/red model
Technical data Bubble King® Supermarin 160 internal:
Skimmer-pump: Red Dragon® X 3000
Delivery rate: 350-1.000 l/h Air inlet ~ 400-4.000 l/h Water inlet
wattage power: Pmax = 40 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from ~ 7W up to 40W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 0,6 kg
Height of intake side: center 60 mm
Dimension pump: 80 mm wide / 130 mm length / ~ 110 mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
Water level: ~ 130 mm up to ~ 300 mm
Weight skimmer: 6 kg inclusiv pump
Height of intake side: center 60 mm
Dimension skimmer with Pump: 200 mm wide / 380 mm length / ~ 580 mm height
RDX Skimmer Pump - Operating_and_maintenance_manual.pdf
Operating_and_maintenance_manual.pdf
Manual for MBK RD X following soon.
for aquariums from 40 - 80 gal (150 up to 300 liter)
Bubble King® Double Cone 130:
max. 750 l/h Air - 3.500 l/h Water = 1 Pump RDX 3000 DC 12V
Base plate: 16 cm x 22 cm / height ~ 46 cm
230 Watt/h 22' (6,75 mtr.) pressure height
speed adjustable Brushless DC pump
with 10V connection
pipe Ø 32mm red
15cm length
60 Watt/h 2.500 l/h air intake
speed adjustable Brushless DC pump 24V
for Bubble King® Double Cone 250 + 300
for Bubble King® SuperMarin 250 + 300
for Bubble King® DeLuxe 250 + 300
AND for VERTEX ALPHA 250 + 300
Red Dragon® 3 Mini Speedy pump 50/60 Watt
inclusiv connecting cable
with 10V-connection (prepared)
for aquariums from 396 - 1056 gallons
Bubble King® Supermarin 300 RD3 internal:
adjustable Red Dragon® 3 Mini Speedy 60W
660gph (2.500l/h) Air - 1585gph (6.000 l/h) Water
Base plate:
Ø 12.60ʺ / height ~ 23.23ʺ (Ø 32 cm / height ~ 59 cm)
with 10V connection
This Product was added to our catalogue on 26/10/2020.
