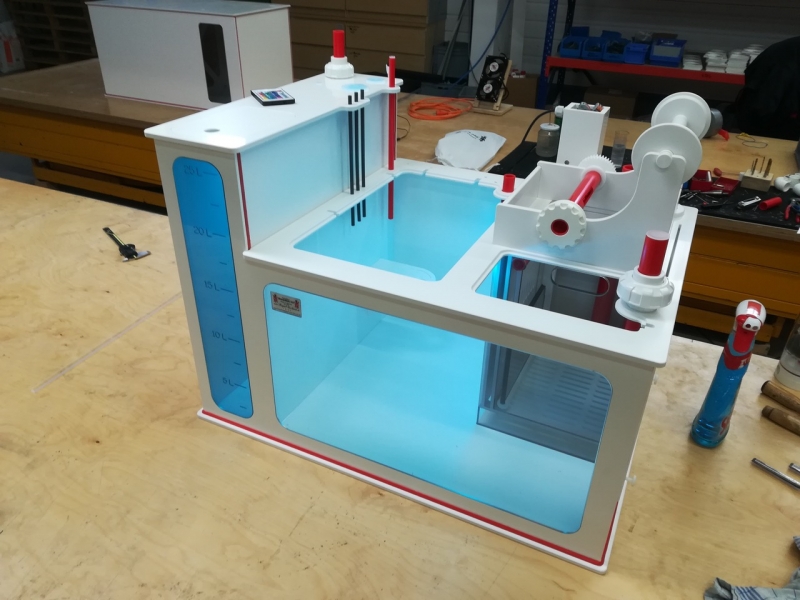

STEP-Vlies(fleece) Dreambox 700 x 500 mm with integrated water tank ~ 25l

1x STEP-Vlies(fleece) Dreambox^® 700 x 500 mm with integrated water tank ~ 25l

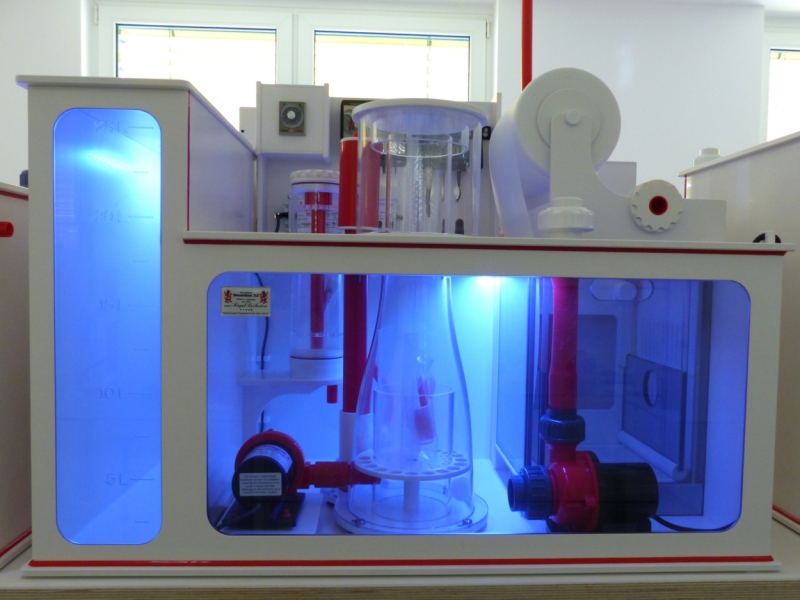

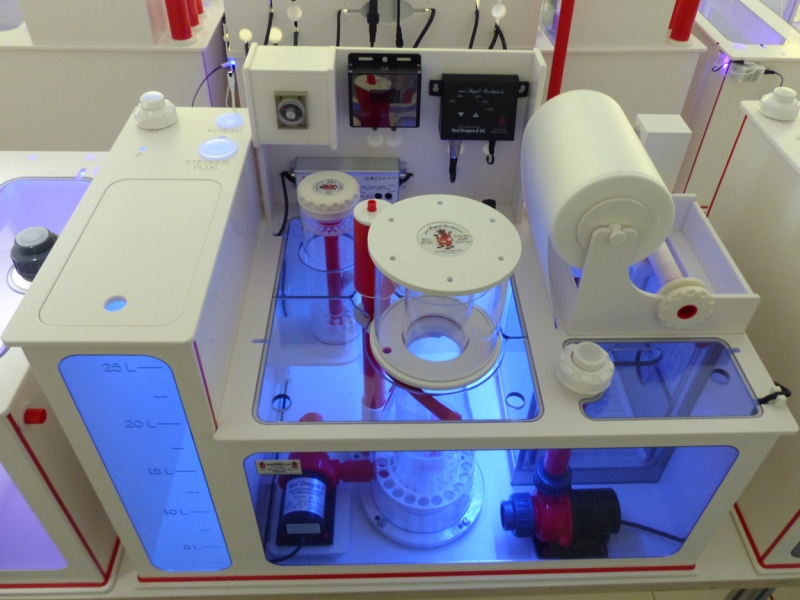

DEMO - Model at tradeshow

Technical data STEP Vlies Dreambox^®:
Dimensions: 70 cm wide x 50 cm length x 35cm height (filter)
Dimensions: 70 cm wide x 50 cm length x 60 cm height (overall height, incl. water tank and cockpit)

Intakes: Standard = 40/32mm red pipe   ~ 1 1/4 and 1"
Outtake: 25mm ~ 3/4"

Volume: ~  80 Liter

Fully automatic Vlies (Fleece) roll filter for fresh and saltwater aquariums. The Vlies (Fleece) of Dreambox^® 3.0 is made of 8 mm Simona-PVC slides (food safe), fixed from the inside and from the outside and finished with a hot gas welded seam by hand. Equipped with an integrated fleece roll filter, cover completely closed and control unit (timer, sensor, drive motor).

• high quality rigid PVC and Plexiglas^® (plexiglass)
• hot gas welded not glued,
  plastic welding never leak as like glass filter cases with silicone gaskets
• significantly sturdily, shock proof and lower weight compared to glass
• 8 mm thickness of PVC and Plexiglas^® (plexiglass)
• extremely noise-dampening by construction
• Intelligent forced water supply by all chambers
• inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter are forwarding into the next Chamber
• Sea-waterproof titanium bolts

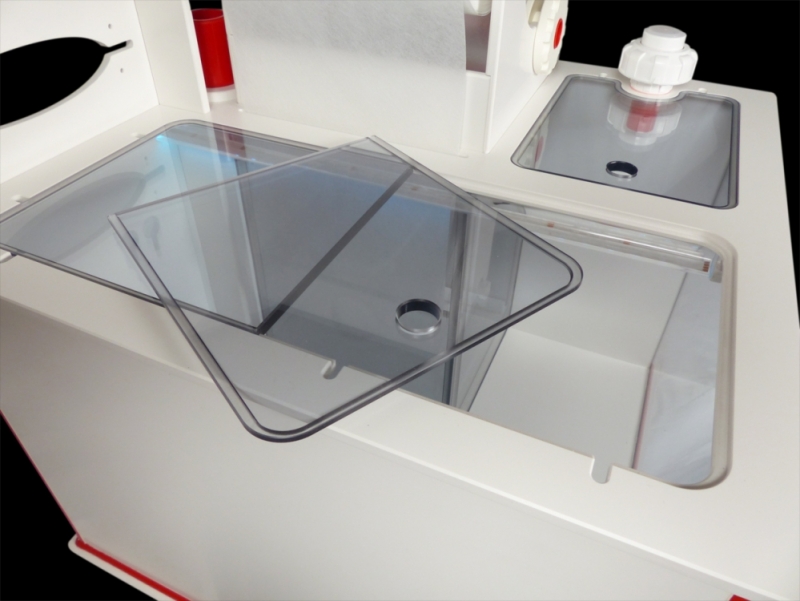

• precise CNC milled cover (closed),
• 100% Made in Germany / Assembly by hand
• with DIN connectors/tubes
• 30 Years of experience in PVC filter and skimmer construction
• incl. LED-lightning with Remote-control

• Roll Vlies Dreambox filter short description:
  * baffle has a grip hole in the middle, as well as extra thin fleece coating surfaces
  * capacitive non-contact proximity switch on the side monitors the control unit of the motor by means of electronic
  * sophisticated recoiler
  * all components in the chamber of the electronics are mounted on the lid firmly
  * 12-volt power supply "Made in Germany"

///////////////////////////////////////////////////////////////////////////////

Shipping cost on request
incl. woodenbox
