Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE

Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
For a larger view click on the thumbnail
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
Red Dragon« 5 ECO 200 Watt / 13,0m│ / 3500 GAL HIGHPRESSURE
1.185.00 USD
Add to cart

Shipping time: 3-4 Days
Product no.: 870/HP/1


Products description

Now, on stock !!!

Red Dragon® 5 ECO pump 200 Watt / 13,0m³ = 3.500GAL / 36V
HIGHPRESSURE

Technical data  Red Dragon® 5 ECO pump 200 Watt 13,0 m³:
200 Watt/h  8,5 mtr.  / 30'  pressure height
Speed adjustable Brushless DC pump

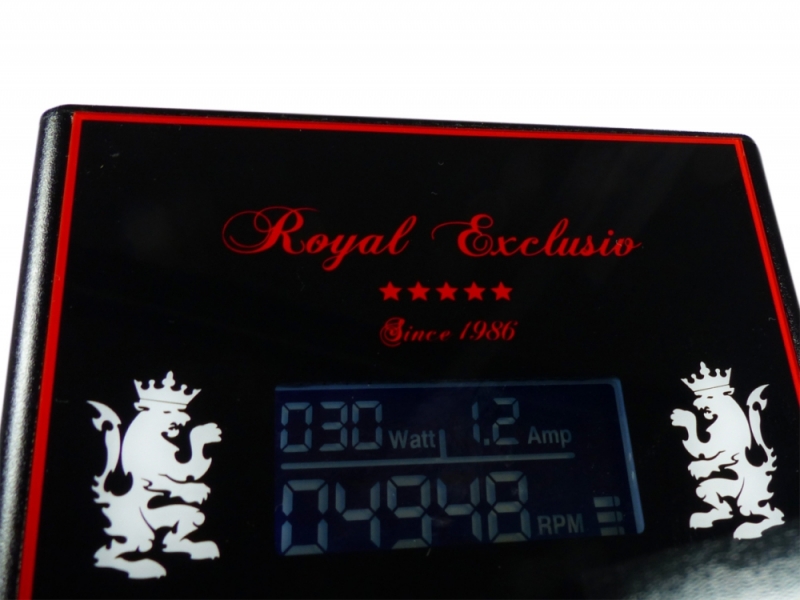

Watt-, Power consumption and Revolution per minute (rpm) - Display
Adjustable in 5-watt-steps from 5W up to 200W
intake side 40 mm (1.25") - pressure side 32 mm (1")
Operating voltage: 100-240 Volt 50-60 Hz (36V Technology)
Protection class pump: IP 68  control unit: IP 54
Weight pump without controller: 4,5 kg
Height of intake side: center 75 mm
Dimension pump: 130 mm wide / 240 mm length / ~ 190 mm height
Dimension control unit: 50 mm wide / 100 mm length / ~ 140 mm height

 pdf_icon  Operating_and_maintenance_manual.pdf  pdf_icon  Power curve_RD5_ECO_200_HP.pdf

Video KEY LOOK On/Off

  • Saltwater resistant M5 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless DC-delivery pump with external power electronics
  • High efficient technology, Sine Wave for very quiet running
  • Inlet and Outlet complete with DIN connection, compact dimensions
  • Easy usage and maintenance, low risk of calcification
  • Heavy and massive craftsmanship against vibrations and oscillation
  • CE conformity, developed and built
  • quality power supply from "Mean Well"
  • high quality touchscreen display with a lot extra functions
    (protection against dry-running, over heating, over voltage, blocking etc.)
  • 10V connection/controlling with 3.5mm TS-connector (phone jack)
  • 3m cable between pump and controller
  • 1,5m cable plug connection EU/US (Rubber connector)

Hint: A suitable slot pipe to protect the pump!
