Red Dragon® 5 ECO 200 Watt / 19,0m³ / 5000 GAL FLOW

Now, on stock !!!

Red Dragon^® 5 ECO pump 200 Watt / 19,0m³ = 5000 GAL / 36V
FLOW VERSION

Technical data  Red Dragon^® 5 ECO pump 200 Watt 19,0 m³:
200 Watt/h  6,75 mtr. / 22' pressure height
Speed adjustable Brushless DC pump
Watt-, Power consumption and Revolution per minute (rpm) - Display
Adjustable in 5-watt-steps from 5W up to 200W
intake side 63 mm (2") - pressure side 50 mm (1.5")
Operating voltage: 100-240 Volt 50-60 Hz (36V Technology)
Protection class pump: IP 68  control unit: IP 54
Weight pump without controller: 4,5 kg
Height of intake side: center 75 mm
Dimension pump, with screw connections: 130 mm wide / 250 mm length / ~ 220 mm height
Dimension pump, without screw connections: 130 mm wide / 210 mm length / ~ 190 mm height
Dimension control unit: 50 mm wide / 100 mm length / ~ 140 mm height

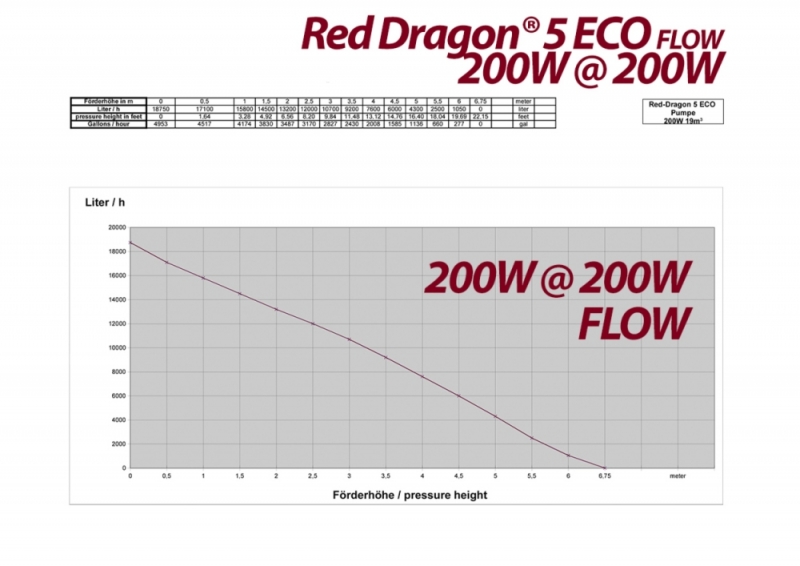

   Operating_and_maintenance_manual.pdf    Power curve_RD5_ECO_200_FLOW.pdf

  ROTOR_Update_2024_key_lock.pdf

Video KEY LOOK On/Off

• Saltwater resistant M5 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless DC-delivery pump with external power electronics
• High efficient technology, Sine Wave for very quiet running
• Inlet and Outlet complete with DIN connection, compact dimensions
• Easy usage and maintenance, low risk of calcification
• Heavy and massive craftsmanship against vibrations and oscillation
• CE conformity, developed and built
• quality power supply from "Mean Well"
• high quality touchscreen display with a lot extra functions
  (protection against dry-running, over heating, over voltage, blocking etc.)
• 10V connection/controlling with 3.5mm TS-connector (phone jack)
• 3m cable between pump and controller
• 1,5m cable plug connection EU/US (Rubber connector)

Hint: A suitable slot pipe to protect the pump!
