Bubble King® DeLuxe 300 internal with RDX 24V

Bubble King® DeLuxe 300 internal with RDX 24V
For a larger view click on the thumbnail
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
Bubble King® DeLuxe 300 internal with RDX 24V
2.225.00 USD
excl. Shipping costs
voltage
Add to cart

Shipping time: 3-4 Days
Product no.: 79/RDX


Products description

for aquariums from  from 317 gal. up to 793 gal. (1.200 - 3.000 liter)

hard facts  Bubble King® 300 DeLuxe RDX internal:
max. 660 gph (2.500 l/h) Air - intake // max.1720 gph (6.500 l/h) Water - intake
with Red Dragon® X pump 60 Watt / 2.500 l/h air intake
with ozone-connection
Base plate: Ø 12.80ʺ / height ~ 25.98ʺ   (Ø 35 cm x 50 cm / height ~ 65 cm)

Technical data Bubble King ® 300 DeLuxe internal:
Water level: ~ 7.09ʺ up to ~ 10.63ʺ (ideal ~ 8.86ʺ) (~ 180 mm up to ~ 270 mm)
Weight skimmer: 16 kg inclusiv pump
Dimension skimmer:
                                  13.78ʺ wide / 19.69ʺ length / ~ 25.98ʺ height
                                  350 mm wide / 500 mm length / ~ 650 mm height

pdf_icon  Data_sheet.pdf  pdf_icon Spare_parts_and_accessories.pdf
pdf_icon Operating_and_maintenance_manual.pdf



BK DL 300 RDX manual following soon

Red Dragon® X pump 60Watt 2.500 l/h

Technical data Red Dragon® X pump 60 Watt / 2.500 l/h air intake:

Skimmer-pump: Red Dragon® X 6500
Delivery rate: 500-2.500 l/h  Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from ~ 8W up to 63W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 45 mm
Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height

pdf_icon  RDX Skimmer Pump - Operating_and_maintenance_manual.pdf

  • Saltwater resistant M4 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless DC-delivery pump with external power electronics
  • High efficient technology, Sine Wave for very quiet running
  • Inlet and Outlet complete with DIN connection, compact dimensions
  • Easy usage and maintenance, low risk of calcification
  • compact design against vibrations and oscillation
  • CE conformity, developed and built

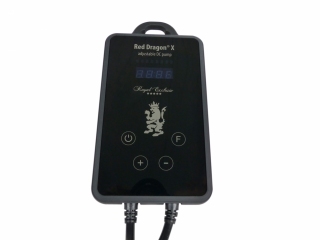

  • high quality touchscreen display with feeding function
    (protection against dry-running, over heating, over voltage, blocking etc.)
  • included in the scope of delivery:
    • Pump with 2m supply line
    • Controller with 1,5m supply line
    • Power plug with 1,5m supply line / rubber connector
    • Nozzle with Air- and Ozone connection
    • Manual German/English
