Bubble King® Double Cone 180 + BK DC 24V

for aquariums/tanks up to 132 gallons (500 liter)

hard facts Bubble King^®Double Cone 180 BK DC 24V:
max. 660 GAL Air - 2.000 GAL Water
max. 2.500 l/h Air - 7.500 l/h Water = 1 (Bubble King^®) BK2500 DC 24V
Base plate: 8.7" x 11" /  20.7" height  (22 cm x 28 cm / height ~ 53 cm)

Technical data Bubble King^® Double Cone 180 BK DC 24V:

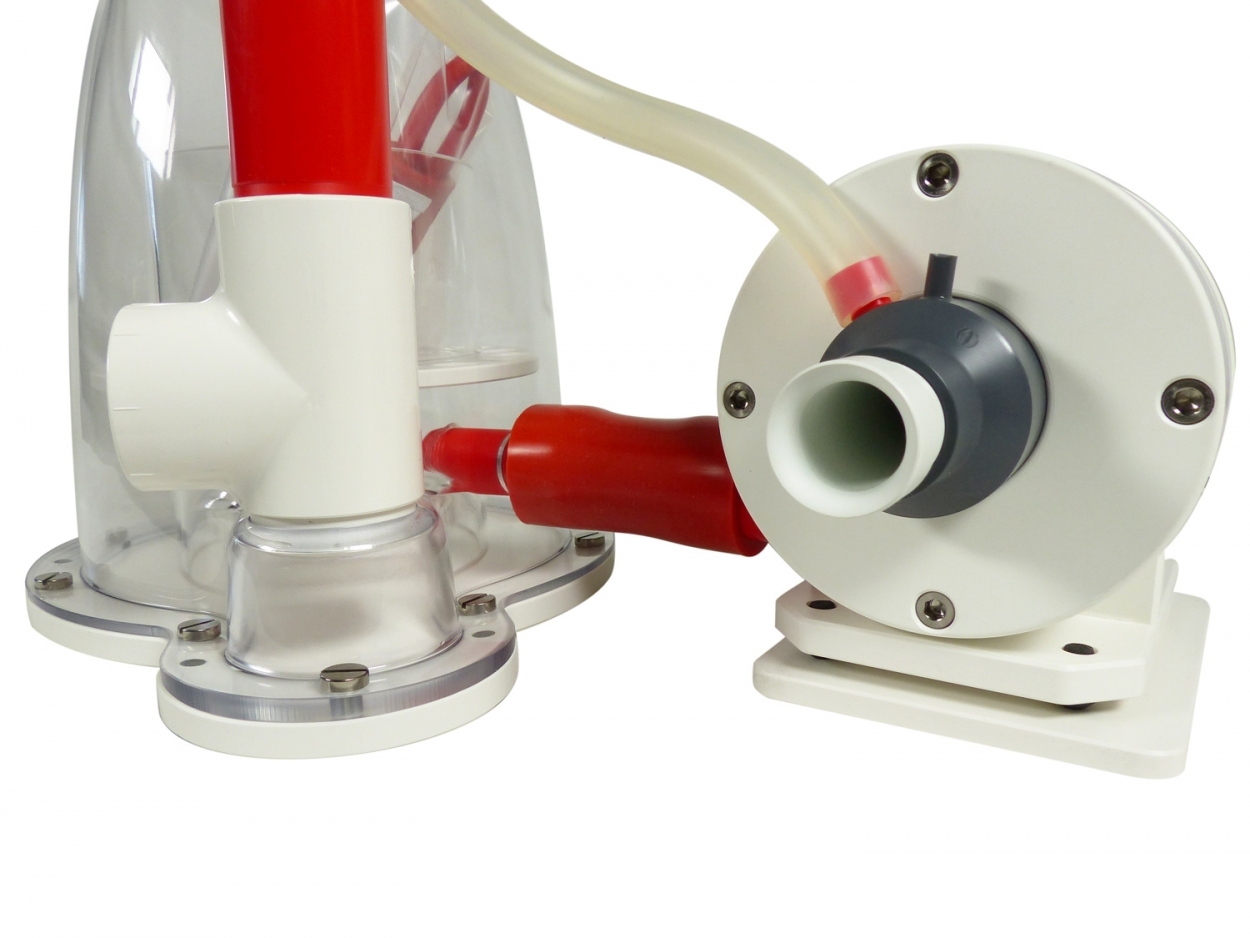

1 x Skimmer-pump: Bubble King^® 2500 DC

Technical data Red Dragon^® Bubble King^® DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 67W
Delivery rate: max. 2.500 l/h  Air inlet ~ 7.500 l/h Water inlet
Wattage - active power: P max. 67 Watt/h

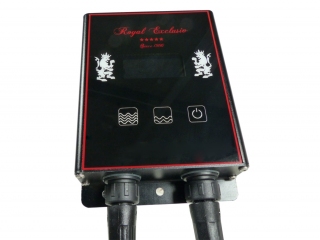

Removable controller and power supply
Cable length pump - controller: ~ 3 m
Cable length controller - power supply: ~ 1,5 m
Operating voltage: 100 - 240 Volt 50/60 Hz
Protection class: IP 68 pump
with 10V connection (jack plug)

Water level: ~ 7.8" up to ~ 10"

Water level: ~ 200 mm up to ~ 250 mm
Outlet absorbate: 350 mm
Weight skimmer: 7,5 kg inclusiv pump

Dimension skimmer without pump:
220 mm wide / 280 mm length / ~ 530 mm height
Dimension skimmer with pump:
10.24" wide / 15.75" length / ~ 20.87 height
260 mm wide / 400 mm length / ~ 530 mm height

  Data_sheet_and_spare_parts.pdf     Operating_and_maintenance_manual.pdf

  Red Dragon BK_DC Operating_and_maintenance_manual.pdf

Video KEY LOOK On/Off
