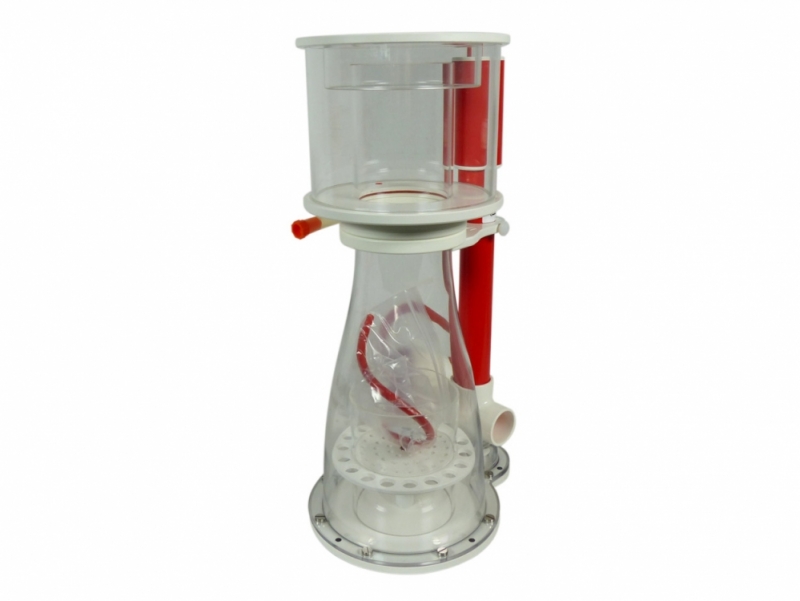

Bubble King« Double Cone 180 + RDX DC 24V

Bubble King« Double Cone 180 + RDX DC 24V
For a larger view click on the thumbnail
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
Bubble King« Double Cone 180 + RDX DC 24V
1.164.36 USD
Add to cart

Shipping time: 3-4 Days
Product no.: 510/RDX

voltage

Products description

for aquariums/tanks up to 132 gallons (500 liter)

hard facts Bubble King«Double Cone 180 RDX:
max. 396 GPH (1.500 l/h) air-intake // max. 1057 GPH (4.000 l/h) water-intake
with Red Dragon« X pump 50 Watt / 1.500 l/h air intake
Base plate: 22 cm x 28 cm / height ~ 53 cm

Technical data Bubble King« Double Cone 180 RDX:
Skimmer pump
Skimmer-pump: Red Dragon« X pump 50 Watt / 1.500 l/h air intake
Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake
Wattage - active power: P = 15-50 Watt/h
Operating voltage: 230 Volt 50 Hz  (also in 110V/60Hz available) (24V Technology)
Protection class: IP 68
Water level: ~ 7.87ʺ up to ~ 9.84ʺ (~ 200 mm up to ~ 250 mm)
Weight skimmer: 5 kg inclusiv pump

Dimension skimmer without pump:
220 mm wide / 280 mm length / ~ 530 mm height
Dimension skimmer with pump:
340 mm wide / 380 mm length / ~ 530 mm height

pdf_icon  Data_sheet_and_spare_parts.pdf   pdf_icon  Operating_and_maintenance_manual.pdf
 BK DC 180 RDX manual following soon

Red Dragon« X pump 50Watt 1.500 l/h

Technical data Red Dragon« X pump 50 Watt / 1.500 l/h air intake:
max. 50 Watt/h, adjustable 15-50 Watt
speed adjustable Brushless DC pump (24V Technology)
Intake side: Nozzle with ozone & air plug
Pressure side: reducing ring ě 32 mm
Delivery rate:  max. 1.500 l/h air-intake // max. 4.000 l/h water-intake
Operating voltage: 230 Volt 50 Hz  (also in 110V/60Hz available) (24V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump: 2,3 kg
Dimension pump: 110 mm wide / 190 mm length / ~ 150 mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height

pdf_icon  RDX Skimmer Pump - Operating_and_maintenance_manual.pdf

  • Saltwater resistant M4 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless DC-delivery pump with external control electronics
  • High efficient technology, Sine Wave for very quiet running
  • Easy usage and maintenance, low risk of calcification
  • compact design against vibrations and oscillation
  • CE conformity, developed and built
  • high quality touchscreen display with feeding function
    (protection against dry-running, over heating, over voltage, blocking etc.)
  • included in the scope of delivery:
    • Pump with 2m supply line
    • Controller with 1,5m supply line
    • Power plug with 1,5m supply line / rubber connector
    • Nozzle with Air- and Ozone connection
    • Manual German/English
